Slope Compactor Roller

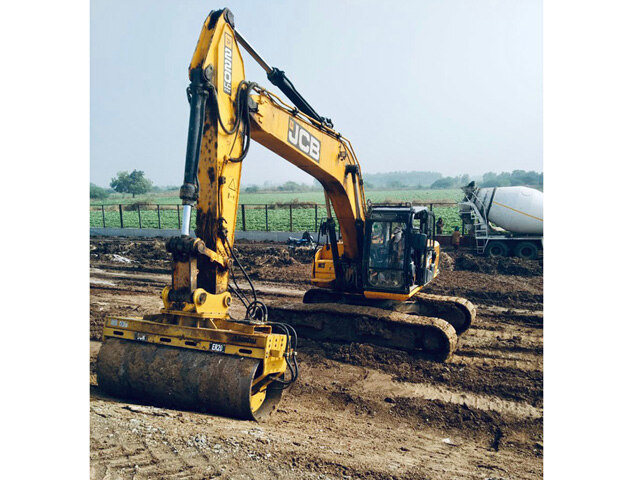

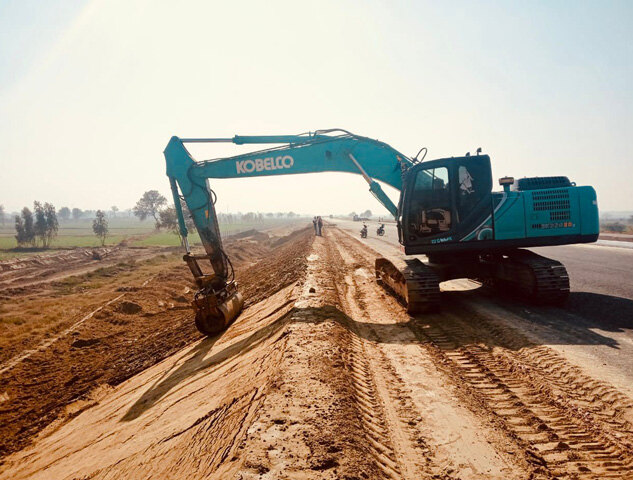

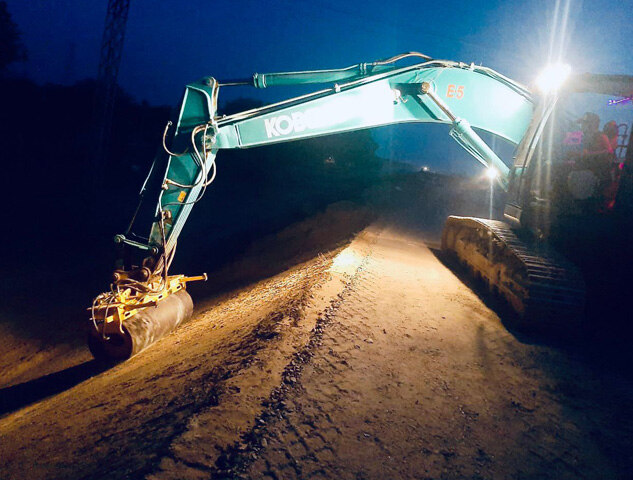

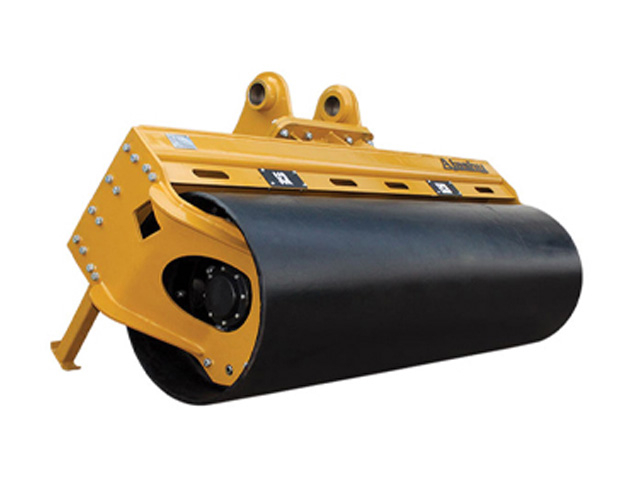

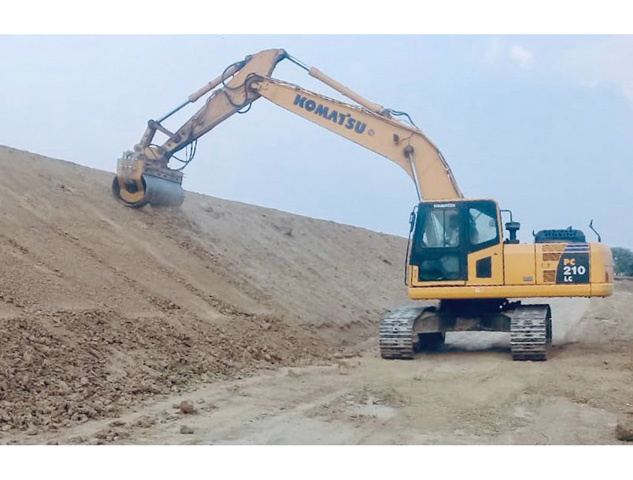

Slope Compactor Roller is designed to be attached onto Excavators/ Backhoe loader. It consists of a vibratory roller which is vibrated through an eccentric shaft while being operated through the hydraulic circuit of the carrier equipment. This is useful at sites where deep soil compaction is required and compaction of slopes such as canals, road-side hills etc and also for the areas which are non-accessible with the conventional compactors. The attachments are available for various carrier models and capacities.

slope compactor roller

Optionals

  • Drum types to choose from: plain, pad foot.
  • Bracket for using same attachment for similar capacity equipment of different manufacturers.
  • Water sprinkler.
  • Piping and Stop valve kit.

salient features

Specifications

# ER 10 ER 20 ER 30
LENGTH (mm) 1470 2500 2500
WIDTH (mm) 660 720 720
HEIGHT (mm) 1220 1400 1650
DRUM LENGTH (mm) 1105 2100 2100
DRUM DIA (mm) 660 760 760
WEIGHT (Kg) 710 1900 2385
CENTRIFUGAL FORCE (kN) 26 34 50
WORKING FLOW (L/Min) 80-100 180-220 250-270
WORKING PRESSURE (MPa) 14-15 16-21 18-21
