External Line Up Clamp

External Line Up Clamp are used externally over the pipes for pipe jointing. There are precision fitted to the exact specifications to ensure true alignment and quick clamping. These have flat cross bar designhydraulics with no need of adjustment.

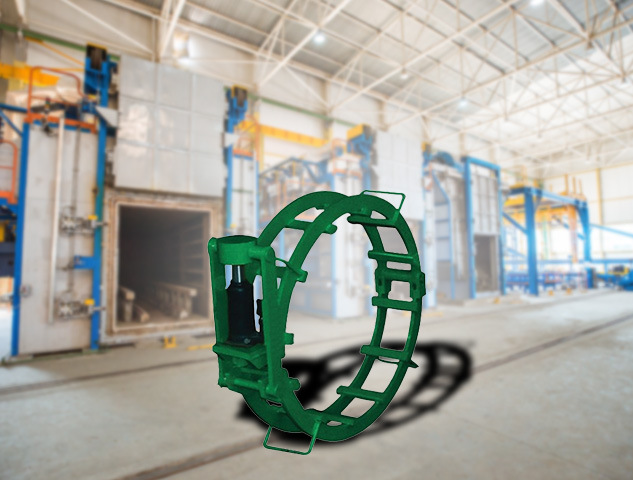

external line up clamp

salient features

Specifications

MODEL PIPE SIZE IN INCHES LENGTH [MM] WIDTH [MM] HEIGHT [MM] WEIGHT [KG] OPERATION
XC 6 - - - - 15 Manual
XC 8 - - - - 18 Manual
XC 10 10" 250 457 483 35 Manual
XC 12 12" 250 483 508 40 Hydraulic
XC 14 14" 250 457 584 42 Hydraulic
XC 16 16" 250 508 635 44 Hydraulic
XC 18 18" 250 559 686 47 Hydraulic
XC 20 20" 250 610 737 54 Hydraulic
XC 22 22" 250 660 787 56 Hydraulic
XC 24 24" 250 711 838 60 Hydraulic
XC 26 26" 250 762 889 68 Hydraulic
XC 28 28" 250 813 940 72 Hydraulic
XC 30 30" 250 864 991 74 Hydraulic
XC 32 32" 250 914 1041 77 Hydraulic
XC 34 34" 250 965 1092 80 Hydraulic
XC 36 36" 250 1016 1143 82 Hydraulic
XC 38 38" 250 1067 1194 85 Hydraulic
XC 40 40" 250 1118 1245 87 Hydraulic
XC 42 42" 250 1168 1295 90 Hydraulic
XC 44 44" 250 1246 1378 93 Hydraulic
XC 46 46" 250 1284 1416 102 Hydraulic
XC 48 48" 250 1321 1448 105 Hydraulic
XC 52 52" 250 1402 1514 110 Hydraulic
XC 56 54" 250 1524 1651 117 Hydraulic
XC 58 58" 250 1596 1678 125 Hydraulic
XC 60 60" 250 1626 2008 140 Hydraulic
