Weldlight
Ajashy Weldlight is a hybrid equipment with lighting mast fitted with DC welding inverter and powere ...
View More
Ajashy Weldlight is a hybrid equipment with lighting mast fitted with DC welding inverter and powere ...

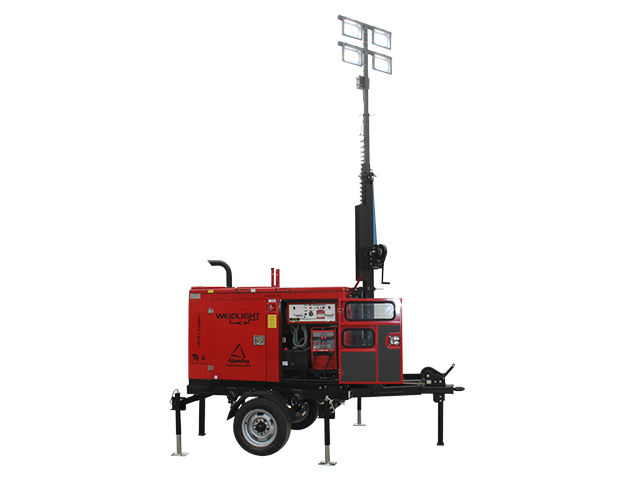

View More Ajashy Weldlight is a hybrid equipment with lighting mast fitted with DC welding inverter and powered with diesel power generating system. The welding and auxiliary output is available at systematically designed panel. A change over switch facilitates the lighting mast and welding operations to cease and the complete unit can be used as a conventional diesel power generator. The system is mounted on a sturdy trolley. Weldlight can be towed on roads and ROWs and can withstand high wind speeds while deployed.
Product
:Weldlight, Weldlight Super
Lighting System
:4 Nos. x 120 W/200 W / 250 W/350 W/ 400 W LED Flood Lights with IP 66 Enclosure
Welding Source
:1 Nos. 400 amps DC Inverter Based
Make
:TMTL
Model
:322 ES,422 ES
Power
:25.1 BHP,35.5 BHP
Rated RPM
:1500
Engine Type
:Air Cooled
No. of Cylinders
:Two,Three
Battery Voltage
:12 VDC/ 35 AH
Oil Sump Capacity
:8 L,9.5L
Oil Change Period
:500 Hours
Oil Grade & Specifications
:CI 15 W 40 (Rakshak Genset Oil)
Fuel Tank Capacity
:100 L,100 L
Make
:Leroy Somer / Stamford / Crompton Greaves
Output Power
:15 KVA,25 KVA
Phase
:3,3
Frequency
:50 Hz
Rating Voltage (V)
:V415
Insulation
:Class H
Operational Dimensions
:3400 x 1900 x6500/9000 mm3,3650 x 1900 x 6500/9000 mm3
Transportation Dimensions
:mm3 2185 x 1500 x34003,3650 x 1500 x 2185 mm3
Canopy Type
:Silent CPCB - Il Compliant
Noise Levels
:73dB (A) at 1 m distance
Lifting Hook
:Available
No of Outriggers
:4 (Collapsible) + 1 Foldable
Suspension
:Ton 2 Axle springLeaf
No of Tyres
:2 (203/65/R15)
Type
:Iron Multiple section with interlock
Extended Height
:6.5 m/ 9 m
Stowed Height
:2.25 m
Extension
:Manual through winch
Rotation
:350 degree
Wind Speed Stability
:110km/h
