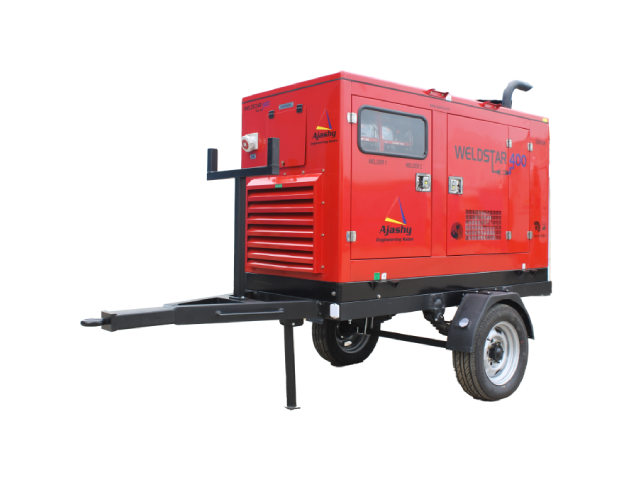

Weldstar
Ajashy Weldstar is a hybrid equipment which can be used as Double/Single Holder Diesel Welding Machi ...
View More
Ajashy Weldstar is a hybrid equipment which can be used as Double/Single Holder Diesel Welding Machi ...

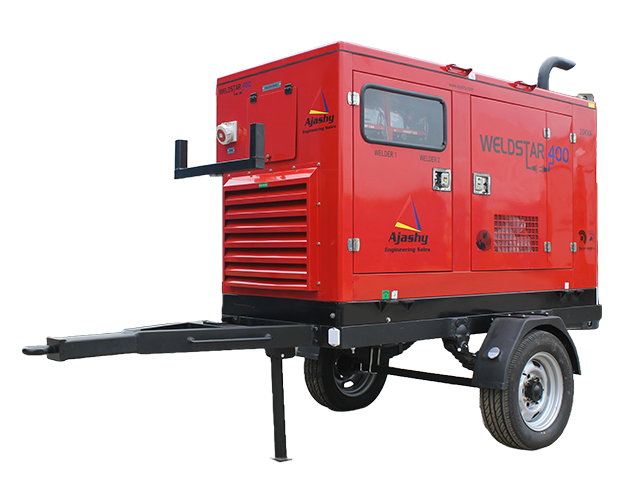

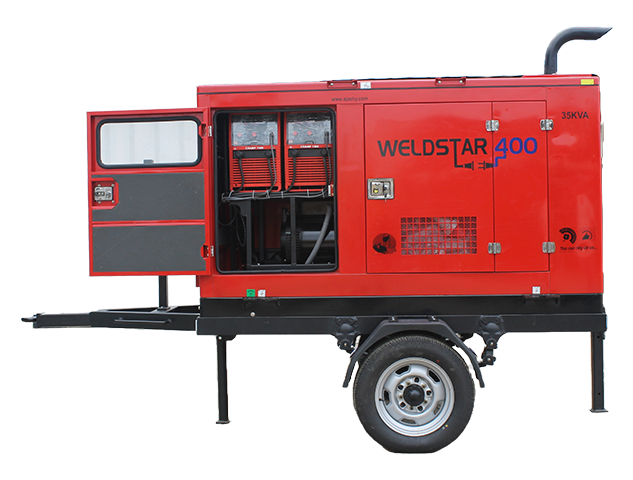

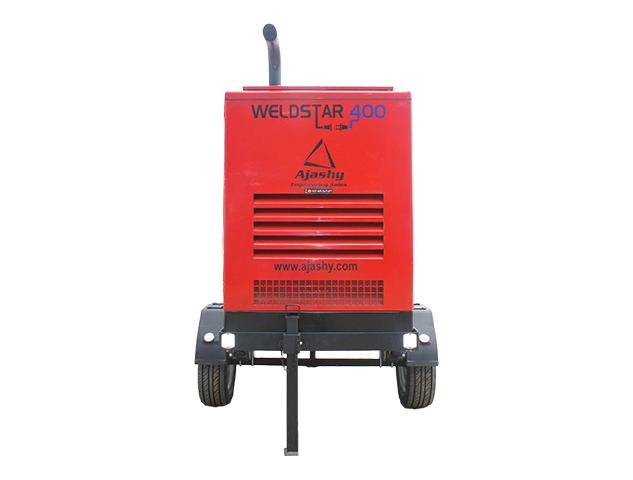

View More Ajashy Weldstar is a hybrid equipment which can be used as Double/Single Holder Diesel Welding Machine and also as diesel power generating system. The welding output with controls is available at systematically designed panel. A change over switch facilitates the welding operations to cease and the complete unit can be used as a conventional diesel power generator. The system is mounted on a sturdy trolley. Weldstar can be towed on roads and ROWs.
Operational Dimensions
:3683 x 1677 x 3353 mm3,3480 x 1651 x 3353 mm3
Operational Dimensions
:2337 x 1626 x 2362 mm3,2210 x 1651 x 2286 mm3
Canopy Type
:Silent CPCB - II Compliant
Noise Levels
:73dB (A) at 1 m distance
Lifting Hook
:73dB (A) at 1 m distance
No of Outriggers
:2 Foldable
Suspension
:Leaf spring Axle 2 Ton
No. of Tyres
:2 (205/65/R15)
Make
:TMTL
Model
:422 TC,322 ES
Power
:48.2 HP,25.1 HP
Rated RPM
:1500
Engine Type
:Air Cooled
No. of Cylinders
:Three
Battery Voltage
:12 VDC/ 35 AH
Oil Sump Capacity
:9.5 L,8 L
Oil Change Period
:500 Hours
Recommended Oil
:CI 15 W 40 (Rakshak Genset Oil)
Fuel Tank Capacity
:100 L
Make
:Leroy Somer / Stamford / Crompton Greaves
Output Power
:35 KVA,15 KVA
Phase
:3
Frequency
:50 Hz
Rating Voltage (V)
:415 V
Insulation
:Class H
