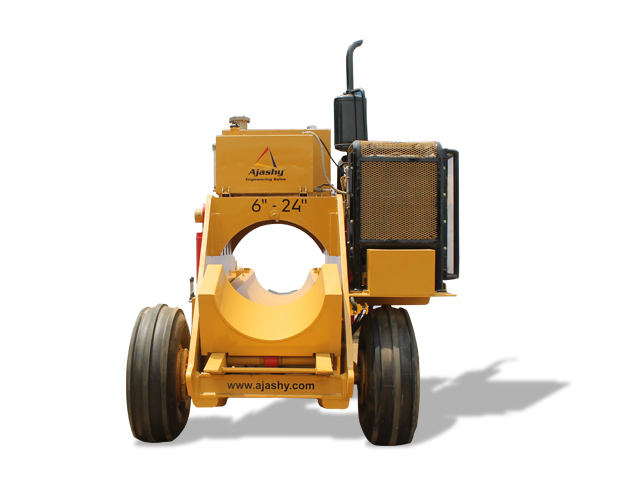

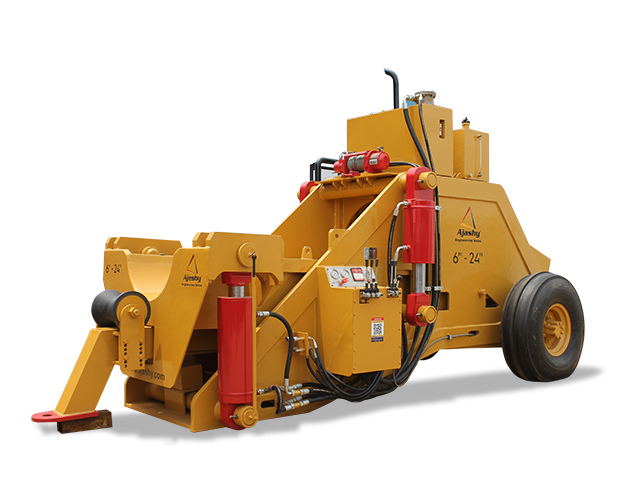

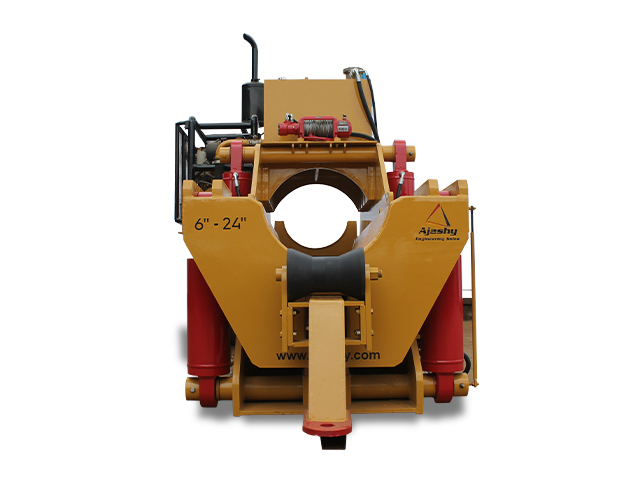

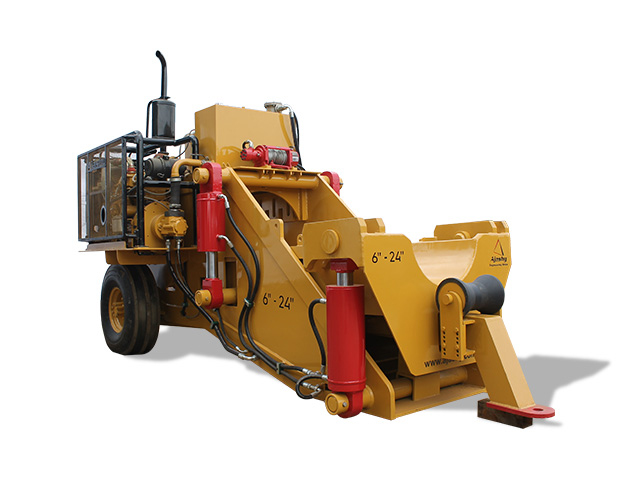

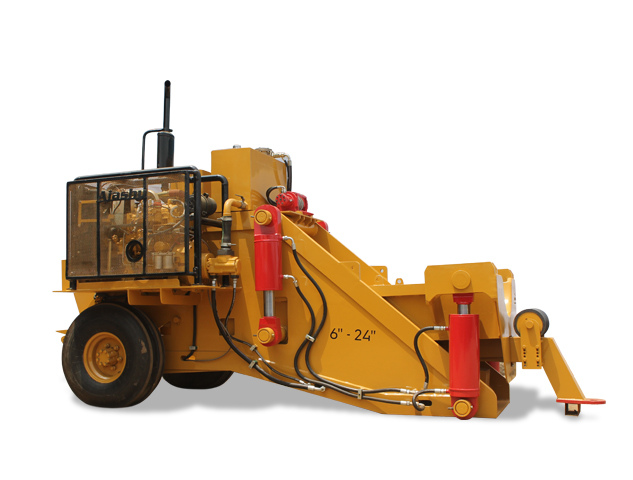

Pipe Bending Machine

Ajashy Pipe Bending Machine is designed to bend a wide range of routine pipes and pipes with high wall thickness and high yield strength efficiently and at higher bending pace.

Fitted with 68 HP higher capacity engine and 110+43LPM superior hydraulic system backed with robust high tensile steel main frame structure design Ajashy PBM produces enormous bending force which makes the complete bending system packed with remarkable bending capabilities resulting in effortless bending from 6 inches to 24 inches.

Ergonomically designed “No Step” operator station decreases operator fatigue drastically, making it easy for the operator to inspect the bending process and finish off jobs faster with high concentration.

pipe bending machine

Optionals

  • Hydraulic Mandrels suitable for various pipe sizes.
  • Coated and Bare Die Sets.
  • Air Compressor to power Pneumatic Mandrels.

salient features

Specifications

  • DiameterPipe

    :

    6" - 24"

  • Pipe Thickness

    :

    Bending Chart to be followed

  • Control Valve

    :

    Wolvoil ( Italy) , 4 Section

  • Pump Type

    :

    Tandem Vane Pump

  • Maximum Pressure

    :

    220 Bar

  • Operating Flow

    :

    65 LPM

  • Hydraulic Tank Capacity

    :

    165 L

  • Recommened Oil

    :

    ISO 46

  • Mandrel Connections Size

    :

    1/2" BSP

  • Pulling Force

    :

    6 Ton

  • Wire Rope

    :

    IWRC, Normal Lay, Ø 16 mm, 25 m

  • Voltage

    :

    12 V

  • Battery

    :

    100 Ah

  • Alternator

    :

    12V

  • Starter

    :

    12V

  • Nos. of Tyres

    :

    2

  • Size

    :

    11.00- 16/ 12 PR

  • Operating Dimensions

    :

    5030 x 2160 x 2900 mm

  • Shipping Dimensions

    :

    4850 x 2160 x 2400 mm

  • Weight

    :

    7455 kg
